Busbar 600 A with cover
Max. current 600 A
Max. Voltage 70 VDC
Terminal diameter 3/8 inch / 9.53 mm
Terminal height 0.76 inch / 19 mm
Terminal material Stainless steel
Flange nut material Stainless steel
Recommended torque 180 lbf·inch / 20 N·m
Screw terminals diameter #8 (0.164 inch) / 4.2 mm
Screw material Stainless steel
Recommended torque 17 lbf-inch / 2 N·m
Busbar material Tin-plated copper (19 x 24 mm)
Base material ABS, black, UL 94 V-0
Cover material ABS, black, UL 94 V-2
Weight, 4 terminals 1.7 lb / 0.75 kg

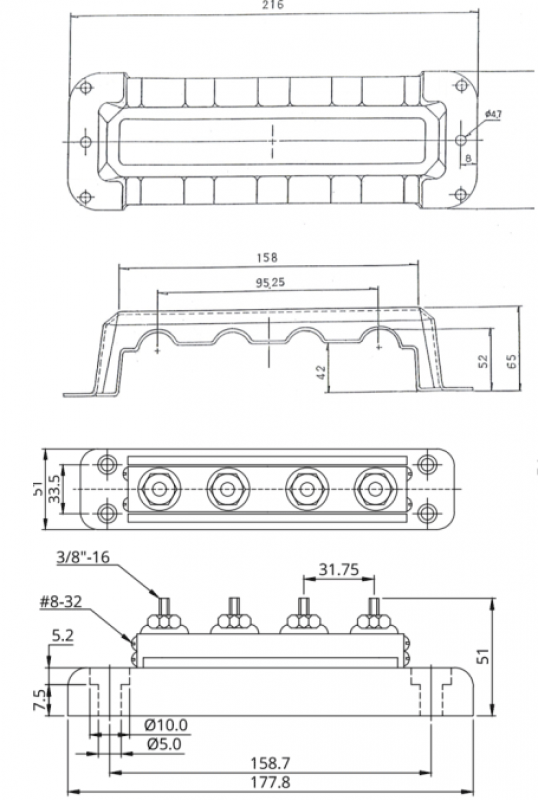

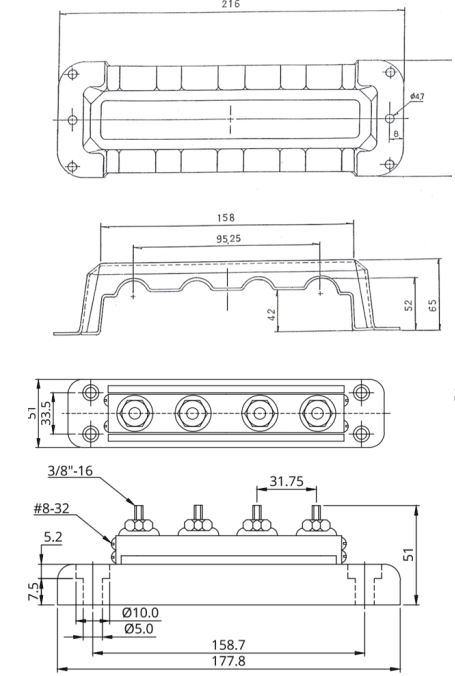

Dimensions (hxwxd) (with cover) 65 x 216 x 86 mm
VIVBB160040010_Datasheet_Busbar_600_A_EN
