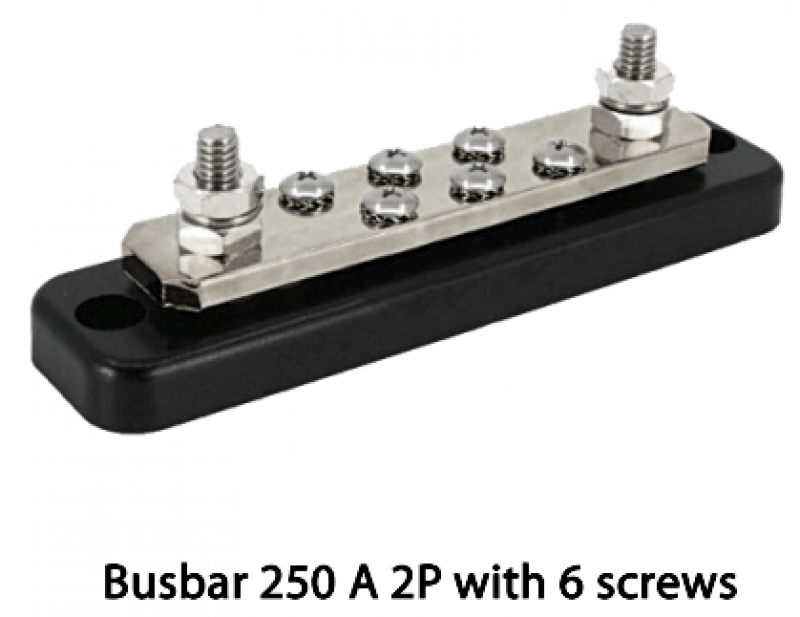

Busbar 250 A 2P with 6 screws, with cover
Max. current rating 250 A
Max. Voltage rating 70 VDC
Terminal stud diameter 5/16 inch / 8 mm
Terminal height 0.67 inch / 17 mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 110 lbf·inch / 13 N·m
Terminal screws 10-24 / 4,8 mm
Terminal material Stainless steel
Busbar strip material Tin-plated copper (6,35 x 25 mm)
Base material ABS, black, UL 94 V-0

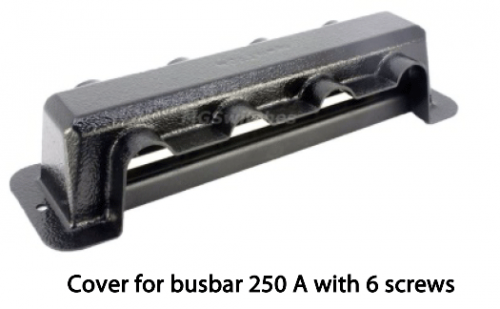

Cover material ABS, black, UL 94 V-2
Weight (6 screws) 0,55 lb / 0,25 kg
Dimensions (6 screws) (hxwxd) (without cover) 42 x 153 x 38 mm
Dimensions (6 screws) (hxwxd) (with cover) 65 x 216 x 86 mm
VIVBB125020620_Datasheet_Busbar_250_A_2P_with_6_or_12_screws_EN
