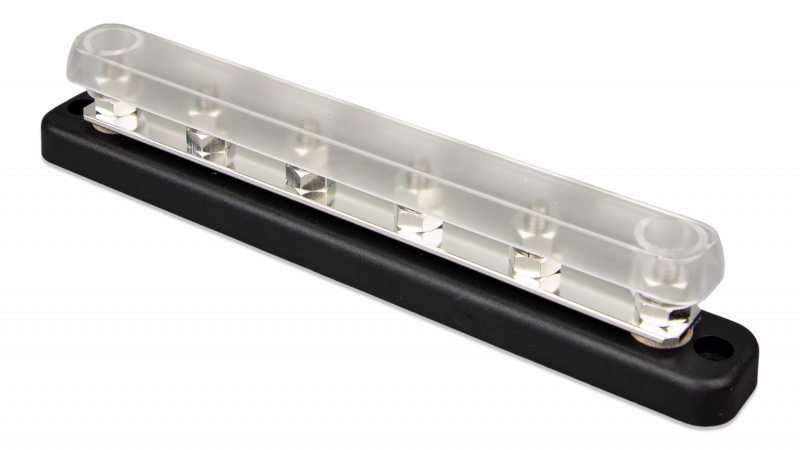

Busbar 150 A with cover
Max. current 150 A
Max. Voltage 70 VDC
Terminal diameter 6.35 mm
Terminal height 17 mm
Terminal material Stainless steel
Hex nut material Tin-plated copper
Recommended torque 7 N·m
Busbar strip material Tin-plated copper (1.4 x 18 mm)
Base material ABS, black, UL 94 V-0
Cover material Clear Polycarbonate, UL 94 HB
Weight, 0.27 kg

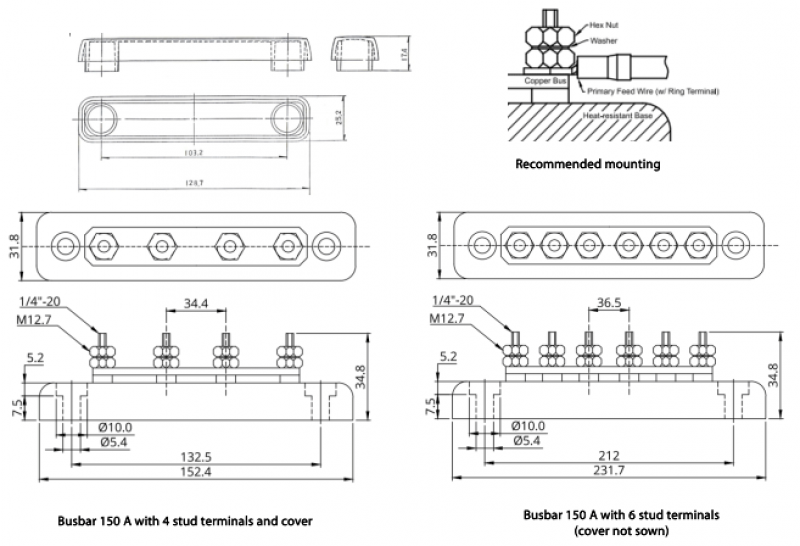

Dimensions (hxwxd) (with cover) 45 x 231.7 x 31.8 mm
VIVBB115060020_Datasheet_Busbar_150_A_EN
