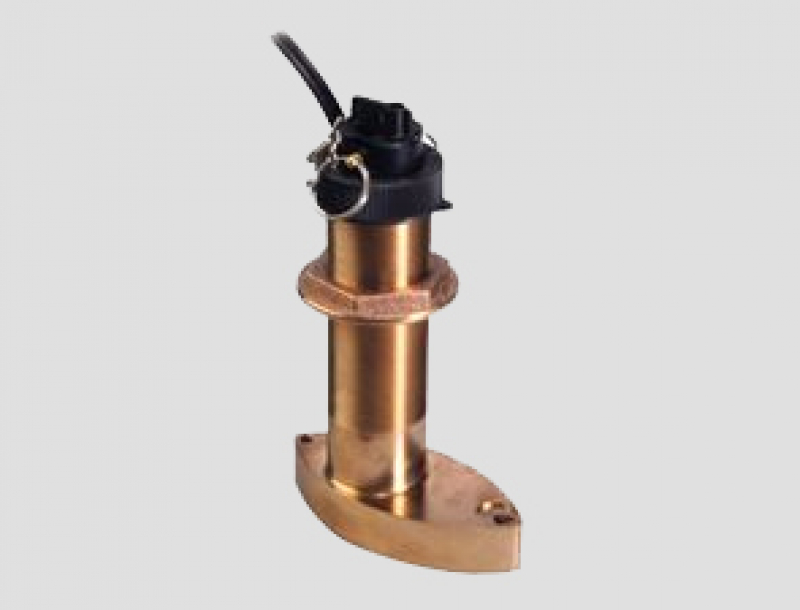

B744VL, Bronze-Durchbruchgeber mit langem Schaft, wie A66091, inkl. E66023 Anpassblock mit Stecker zum Anschluss an Fischfindermodul Raymarine CP370, DSM30, DSM300
| B774V FEATURES |

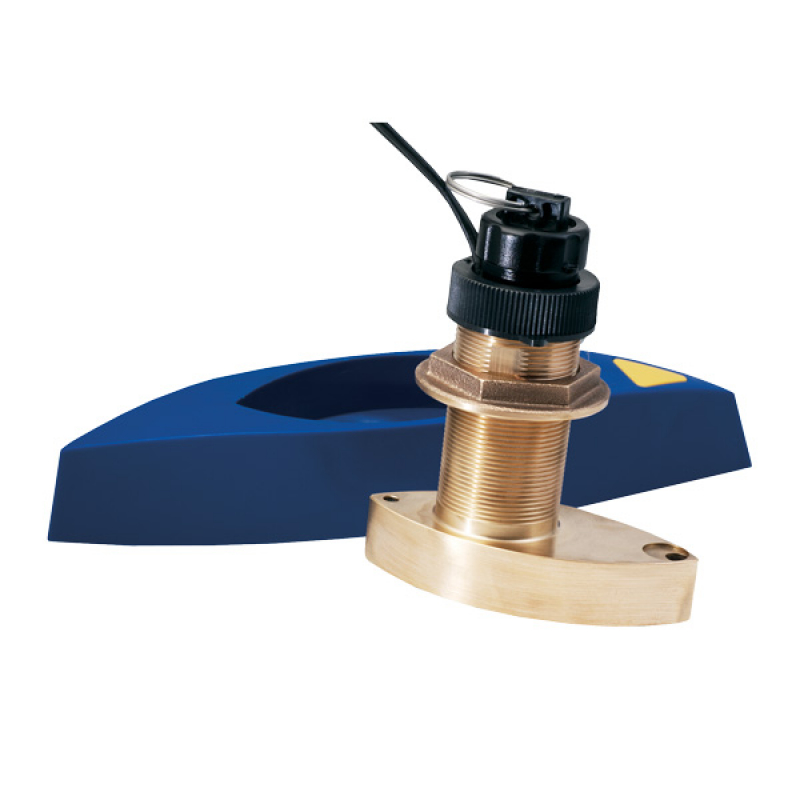

| Description | 600W Bronze Long Stem Through Hull Transducer with High-Speed Fairing |

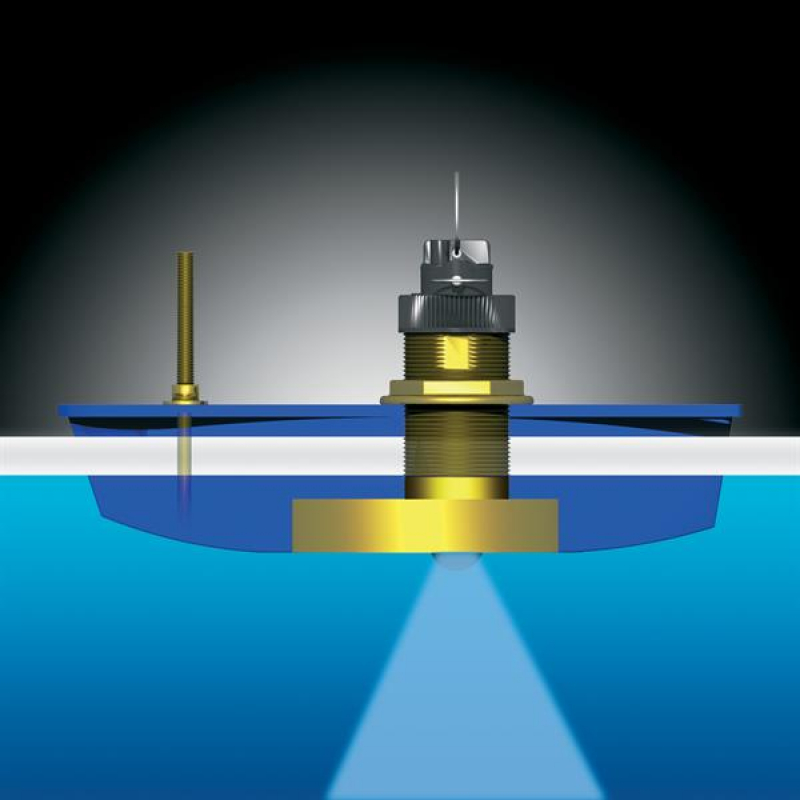

| Installation | Through Hull |
| Material | Bronze |
| Power (RMS) | 600W |
| Max Depth (Ft) | L: 1,200 / H: 700 |
| Frequency (KHz) | 50 / 200 |
| Beam Width (L/H) | 45°/12° |
| Records | Depth / Speed / Temperature |
| Approved Hull Material | Fiberglass / Wood |
| Cable Length (Ft/M) | 33ft / 10m |
| Supported Deadrise / Transom Angles | 0-24° Deadrise |
| Part Number | A66092 |
| Additional Notes | The B744V offers great triducer performance in a single thru-hull package. The included fairing block ensures reliable performance at speed. |
